Stainless Steel Light, Flag & Signage Poles

Stainless steel light, flag and signage poles are known to date back to at least 1944 in the US and they are a well-known older application in Japan and Europe as well.  The oldest poles were made from the austenitic stainless steels 201, 304 or 316. The first use of duplex stainless steel poles may have been in the Canary Islands in 1991, when the alloy 2205 was used to provide a higher level of corrosion resistance than that of Type 316. Other duplex stainless steel alloys have subsequently been used for these applications.

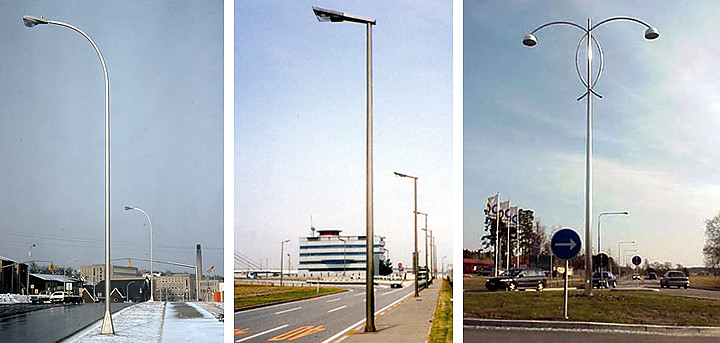

These austenitic and duplex stainless steel light poles in the US (left), Japan (center) and Europe (right) were installed between 1964 and 2004.  They are all still in use and have no maintenance requirements.

Design Considerations
The primary design requirements for these applications are adequate corrosion performance for the service environment, excellent fatigue strength, and, in some applications, impact toughness. While carbon steel, iron and aluminum are more commonly used for pole applications, stainless steel’s superior performance in all of these design categories makes it the most cost effective long-term choice.

Corrosion Performance
Selection of a material should start with an assessment of the required level of corrosion resistance, particularly the presence of aggressive salts (coastal or deicing) or polluted environments. It is important to remember that constant pole movement due to wind loading can cause protective paint coatings to fail prematurely.  They should therefore not be relied on unless regular maintenance repainting is acceptable. Metal coatings that are applied to improve the corrosion resistance of steel or aluminum can affect fatigue life and those implications must be considered. If an appropriate stainless steel alloy is specified, there is no need for a coating system.

Which stainless steel is most appropriate for a given application depends on whether the pole’s purpose is purely utilitarian or if there are aesthetic requirements.  Type 316 stainless steel or the lean duplexes with similar corrosion resistance are often cost-effective long-term choices for poles, signage and fixtures in coastal areas and along busy roadways with deicing salt use. If the location is particularly corrosive, if coastal storm surge flooding might cause immersion, or if there are long-term aesthetic requirements, then a more corrosion-resistant stainless steel like 2205 duplex may be required. Please see the Selection section of IMOA’s website for alloy guidance and comparative metal corrosion data.

Light Poles

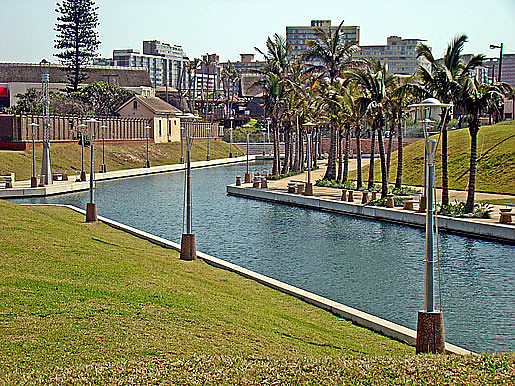

Type 316 stainless steel light fixtures in a coastal park in South Africa
Photo: Catherine Houska, Courtesy of the Nickel Institute

Fatigue Performance
Corrosion and some aspects of design can play a significant role in fatigue performance and must be considered in a complete comparative analysis. The type of wind loading that can occur will also vary with the application. For example, the wind patterns caused by large vehicles must be considered for highway poles.

Aluminum highway poles are increasingly failing due to fatigue and stainless steel is a logical alternative. The exceptional fatigue performance of austenitic stainless steels (e.g. 201, 304, 316, etc.) is well known. Since poles will be cold worked (rolled, stretched, etc.), which increases their strength, it is interesting to note that duplex stainless steels have a higher fatigue limit than the austenitics at the same static strength. The fatigue limit increases with the static strength for both stainless steel alloy families.

The duplex and austenitic stainless steels are also much less notch sensitive than carbon steel.  Furthermore, the effect of strength on notch sensitivity is significant for carbon steel but almost non-existent in these stainless steels.(1) Please see the Structural Design section of IMOA’s website for more information.

Impact Toughness

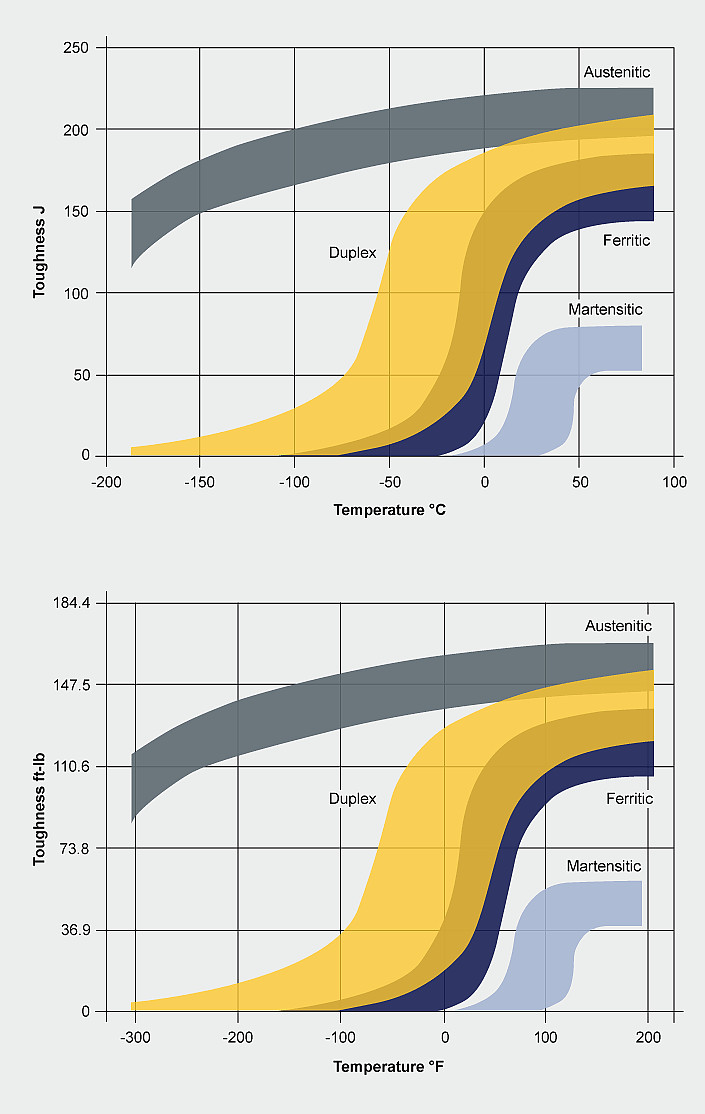

Impact toughness can be important for some applications. The graph below provides general guidance on the relative impact toughness of different stainless steel families. Special processing, thickness, the level of cold work and welding are among the parameters that can affect the actual performance. The austenitics have the best performance of all pole options for low design temperatures.

Case Study 3: New York and Miami Light Poles
Case Study 6: Canary Islands Railings and Lampposts

(1) Rune Johansson and Hans Nordberg, “Fatigue Properties of Stainless Steel Strip”, AvestaPolarit R&D (now Outokumpu)
