Molybdenum compounds in catalysts

The function of a catalyst is both to speed up a chemical reaction and to steer it towards a desired product. e.g. an oxygenated organic compound rather than carbon dioxide and water.

Catalysts having molybdenum as a component are listed in Table 1.

Molybdenum compounds in catalysts
Sulfided Co-Mo or
Ni-Mo on alumina
Hydrotreating, hydrodesulfurisation Remove sulfur from crude petroleum Oil and petroleum refining
Bi-Mo oxides Propene selective oxidation, ammoxiation Synthesis acrolein, acrylonitrile Making polymers and plastics
Mo-V oxides Acrolein oxidation Synthesis acrylic acid Making polymers and plastics
Fe-Mo oxides Methanol oxidation Synthesis formaldehyde Making formalin, polymers, resins
Mo oxide on alumina Olefin metathesis Propene to ethene and butene Olefin synthesis
Mo complexes Epoxidation Olefin to epoxide Polyether synthesis
Heteropolyacids-phosphomolybdate Propene hydration Propene to alcohol Alcohols synthesis

Table 1: Molybdenum compounds in catalysts

We see from Table: Molybdenum compounds in catalysts that it is Mo-O compounds which find application in high volume catalysts. Sulfide catalysts are derived from the oxides. From the US Patent Database we can derive an indication of the interest in catalytic applications of molybdenum compounds, see Fig. 1. We include molybdenum carbide and nitride where there is growing interest.

Catalytic applications of molybdenum compounds

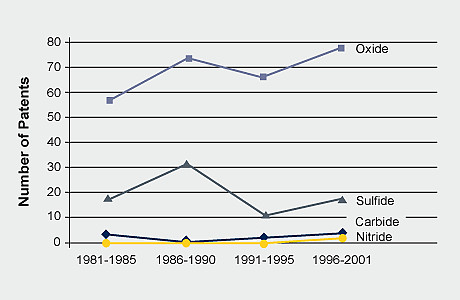

Fig 1: Catalytic applications of molybdenum compounds. US patents according to type of compound

Molybdenum-based catalysts have a number of important applications in the petroleum and plastics industries. A major use is in the hydrodesulfurisation (HDS) of petroleum, petrochemicals and coal-derived liquids. The catalyst comprises MoS2 supported on alumina and promoted by cobalt or nickel and is prepared by sulfiding cobalt and molybdenum oxides on alumina. As the world supply of crude oil is further extended and low-sulfur crudes become less available, molybdenum-based catalysts will increase in use. Molybdenum not only allows for economical fuel refining but also contributes to a safer environment through lower sulfur emissions.

Molybdenum catalysts are resistant to poisoning by sulfur and, for example, catalyse conversion of hydrogen and carbon monoxide from the pyrolysis of waste materials to alcohols in the presence of sulfur, under conditions that would poison precious metal catalysts. Similarly Mo-based catalysts have been used in the conversion of coal to hydrocarbon liquids.

As a component of the bismuth molybdate selective oxidation catalyst molybdenum participates in the selective oxidation of, for example, propene, ammonia, and air to acrylonitrile, acetonitrile and other chemicals which are raw materials for the plastics and fibre industries. Similarly molybdenum in iron molybdate catalyses the selective oxidation of methanol to formaldehyde.

 Molybdenum in hydrodesulfurisation catalysts

Removal of sulfur compounds from gasoline and diesel is driven by ever more stringent legislation since during combustion the sulfur compounds oxidise to sulfur dioxide, the source of acid rain. They are also potent poisons of auto-exhaust catalysts. The process is catalytic hydrodesulfurisation - removal of sulfur by reaction of the compound with hydrogen - for which molybdenum-based catalysts are essential. Recalcitrant compounds are thiophene and benzothiophenes. The reaction of thiophene with hydrogen is typical:

Hydrodesulfurisation of Thiophene

Fig 2: Hydrodesulfurisation of Thiophene

The catalyst, see Fig. 3 , comprises cobalt (3 wt-%) and molybdenum (8 wt-%) as sulfides supported on alumina. It is prepared by impregnating gamma-alumina with ammonium heptamolybdate or dimolybdate and cobalt(II) nitrate followed by drying and calcination. The molybdenum and cobalt sulfides are formed when the catalyst is pre-sulfided or used.

Co-Mo/alumina catalyst

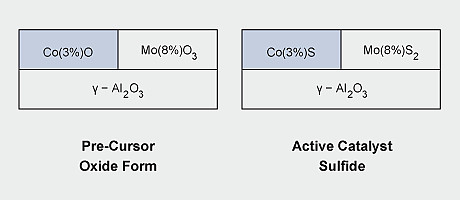

Fig 3: A Co-Mo/alumina catalyst: before use, oxide form; after use or pre-sulfiding, sulfide form

The active catalyst consists of hexagonal slabs of molybdenum disulfide, sections of a molybdenum disulfide layer, Fig. 4. The utility of molybdenum in this catalysis derives from the layer structure of molybdenum disulfide. (The same is true for tungsten disulfide which also catalyses hydrodesulfurisation.) The catalytic sites are at the slab edges (where cobalt atoms, not shown, are also located). A reactant molecule, thiophene, is shown in Fig. 4 adsorbed near an edge site and reacting with hydrogen atoms to give, ultimately, butane and hydrogen sulfide. We require of molybdenum disulfide the ability to dissociate hydrogen molecules, adsorb reactant molecules, and release sulfur as hydrogen sulfide reversibly.

Hydrodesulfurisation of thiophene

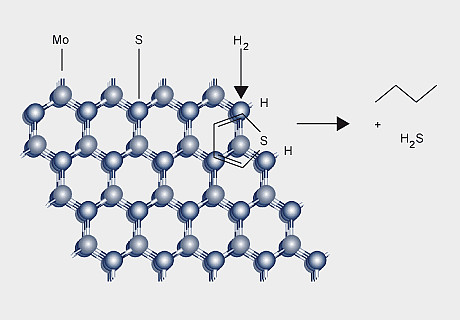

Fig 4: Hydrodesulfurisation of thiophene catalysed by molybdenum disulfide: Mo atoms lighter, S atoms darker

The active component is molybdenum disulfide, see Fig. 4. Cobalt (a promoter) is added to increase the activity. Alumina provides surface area (ca 250 m2 g -1) by dispersing the cobalt and molybdenum.

Molybdenum in selective oxidation catalysts

The technically important reactions of methanol oxidation to formaldehyde and propene to acrolein and acrylonitrile are shown in Fig. 5.

In these selective oxidations the slow step, which controls the overall reaction rate and which it is desired to catalyse, is activation of the first C-H bond. With these two-component catalysts, the first step, breaking the C-H bond, is catalysed by the more basic oxide, e.g. bismuth oxide. Molybdenum is involved in the next step - activation of a second hydrogen and insertion of an oxygen atom into the organic molecule. In this step molybdenum is reduced. Reduced molybdenum is reoxidised by oxygen from the feed. The catalysis depends on the ability of oxomolybdenum species to cycle between the VI and IV oxidation states, in the process releasing and transferring an oxygen atom:

Mo(VI)O2   Mo(IV)O + O

Note that the inserted oxygen comes from the lattice of the catalyst; there is no direct reaction between the organic compound and an oxygen molecule. The same molybdenum chemistry - reduction of molybdenum accompanied by oxygen atom transfer - also operates with oxomolybdenum enzymes, e.g. xanthine oxidase.

Selective oxidations over iron molybdate and bismuth molybdate catalysts

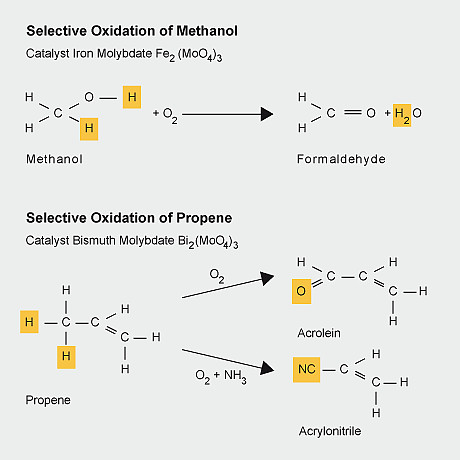

Fig 5: Selective oxidations over iron molybdate and bismuth molybdate catalysts. Highlights show the reactive hydrogen atoms and in the substituted atoms in the products
